Architecture
Attack Surface
Real Examples
Suggestions
Vulnerabilities
Attacks
Effects
Solutions ICS Threat Scenarios
Luigi Auriemma
September 2015
SCADA architecture
Every situation is different because it’s an
highly customized environment in which
are used different types of:
- Connections
- Protocols
- Devices
- Software
- Security procedures
- Security products (firewall, AV, IDS)
- Solutions
What’s sure is that more devices will be
connected via TCP/IP, and so, it’s more
easy to get reached by possible attackers.
Yokogawa SCADA architecture example
PLC / RTU / DCS devices
&
HMI / SCADA
- Siemens
- General Electric
-ABB
- Rockwell
- Invensys / Wonderware
- Schneider Electric
- Indusoft
- Codesys
- Iconics
Operating System
&
General Software
- Security vulnerabilities
- Design issues
- Bad security practices
- Old software versions
TARGETS
Kernel vulnerabilities Old versions necessary for
some SCADA products
HMI/SCADA ATTACK SURFACE
Server
-side vulnerabilities
through TCP and UDP
open ports
Handling of project files
and other files with
registered extensions
Client
-side vulnerabilities
through the integration in
web browsers:
ActiveX
and
URL protocols
Local privilege escalation
with processes and
services running as
SYSTEM or Administrator
Proprietary protocols used to
allow all the components to
communicate
OPC
Monitor
HMI
Historian
Application
Database
The code is usually poorly written and tested… or ...
Server-side protocols
Web applications
… or not meant for the final product!
Server-side protocols
PLC firmware
or
SCADA software
Hardcoded accounts, passwords and keys
Left in the code due to design errors, maintainance accounts, backdoors or
just forgotten there by mistake!
It’s a very diffused problem…
Even exploited by Stuxnet
2006
2008
2010
2012
History of the Siemens WinCC
default SQL Server password
abused by Stuxnet for infection
Memory corruption vulnerabilities
- Stack based buffer-overflow
- Heap overflow
- Integer overflow
- Format string
- Array overflow/underflow
- Write a byte/long at relative locations
- Write a byte/long at arbitrary locations
-Use-after-free (project files)
- Double free (project files)
Effects
- Code Execution
- Denial of Service in case of failure
Example:
CVE-2011-5007 –3S CodeSys buffer-overflow
…
Why is it interesting?
Stack protections and secured exception handlers
There are ways to limit the exploitation of these issues.
BUT the software is usually built without stack protections and
with DEP and/or ASLR disabled in modules allowing the
exploitation of the vulnerabilities.
DEP
Data Execution Prevention
ASLR
Address Space Layout Randomization
Effects
- Stealing information and sensitive data
Information disclosure vulnerabilities
- Directory traversal, like ..\..\..\DATA.INI
- Arbitrary files download, like C:\PATH\DATA.INI
- Memory disclosure
Examples:
CVE-2011-4878 –Siemens WinCC
Flexible HmiLoad and miniweb directory
traversal
CVE-2011-4051 –Indusoft WebStudio
CEServer full remote file access
Effects
- Code Execution via commands executed at next boot/login
- Code Execution by overwrite specific executables
- Manipulate configurations by overwriting existing files
Writing files in arbitrary and relative locations
Example:
CVE-2012-0232 - GE Intelligent Platforms
Proficy Real-Time Information Portal
Directory Traversal
Effects
-The service doesn’t work
- System unresponsive
- Other processes on the same machine may get affected

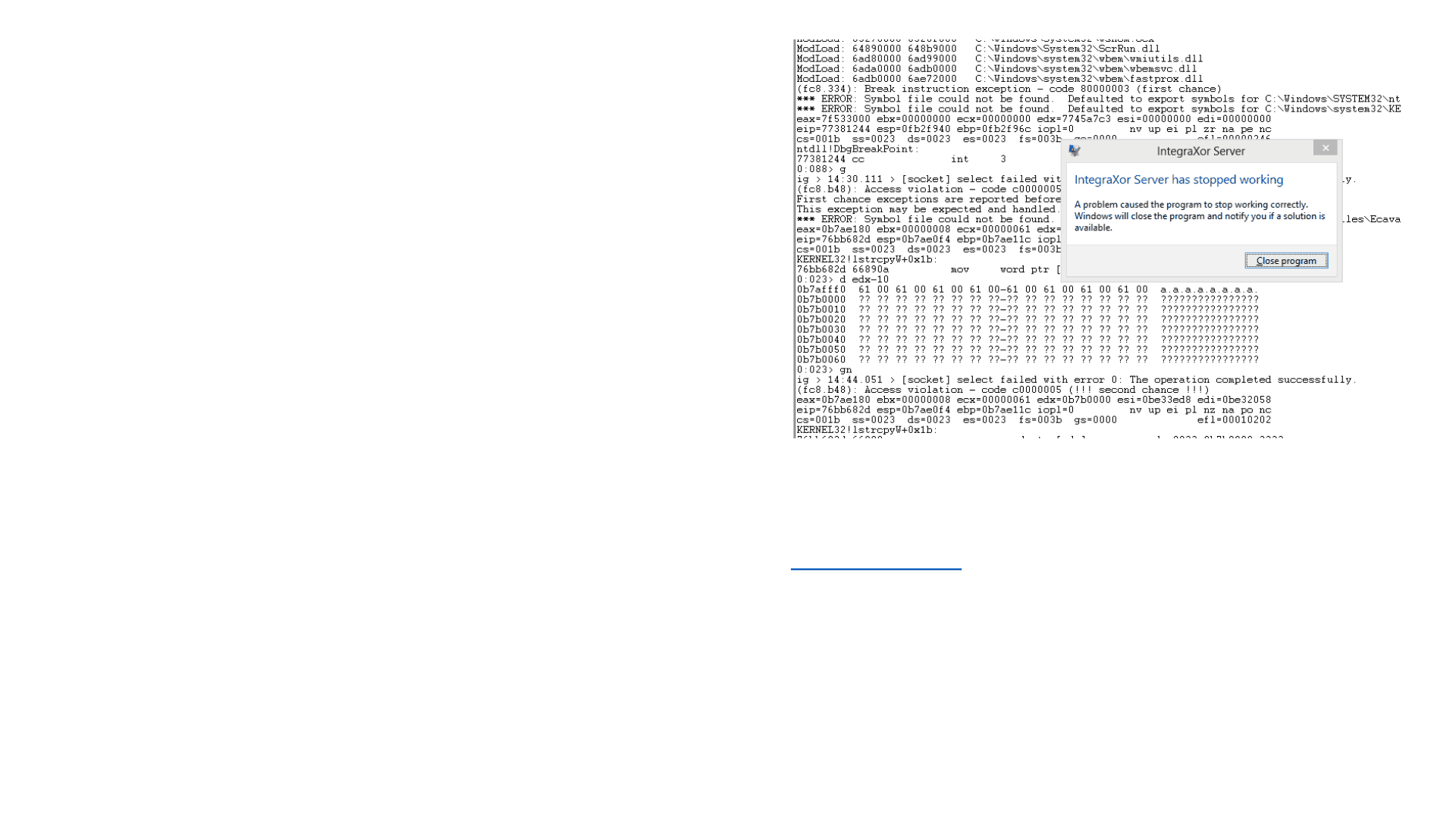

Denial of Service
- NULL pointer
- Resource consumption (CPU and memory)
- Unexploitable memory corruption
Example:
CVE-2011-3489 - Rockwell Automation
RSLogix Overflow Vulnerability
Effects
- Code execution
- Stolen information and database
- Authentication bypass
Web vulnerabilities
- SQL injection
- Local and Remote File Inclusion
- CSRF Cross-Site Request Forgery
- XSS Cross-site Scripting
Example:
CVE-2015-6461 –Schneider Electric
Modicon Remote File Inclusion
Example of this class of vulnerabilities
Who reports security vulnerabilities in SCADA and industrial software & devices
External researchers for fun or during the penetration
testing of the products used by their clients, for
example:
- Me till summer 2012
- Scada Strangelove project
- Many researchers via ICS-CERT / vendor
- Many researchers (publicly, not prior to vendor)
Vendors during the internal auditing of their products
0-days in the wild... rare event, for example Stuxnet
Finding the
software or
the firmware
Finding the
hardware
devices
Configuring
the products
Possible
vendor
legal
actions
Finding
updates &
patches
Is it a bug or a
feature?!?
Cool, but…
Patching SCADA and PLC vulnerabilities
The time required by the vendors to fix a vulnerability,
testing the patch and releasing it is very long.
A 0-day may be fixed after various months.
And the situation is similar also for the vulnerabilities
reported directly to the vendor (coordinated disclosure)
PDF: Securing ICS Applications When Vendors Refuse Or Are Slow To Produce a Security Patch
Sometimes there is not even a patch and the
vendor releases a “recommendation” for
limiting the usage and access to the
vulnerable component!
Sometimes the patches are not applied by the customers
because not aware of the issues or to avoid downtimes
and possible problems after patching… if it works why
taking risks?
Many infrastructures are reachable from the Internet
Shodan and manual scanning of selected IP ranges to spot
easy-to-crack/open VNC sessions and SCADA products online
Many infrastructures are reachable from the Internet
Project SHINE
Attempt to use Shodan to spot industrial servers
and devices through various queries.
They claim to have found over 2 millions of
devices between 2012 and 2014.
Some statistical results were released.
Many infrastructures are reachable from the Internet
Viss’ results and Project SONAR
Dan Tentler (“Viss”) used SHODAN to find systems meant to be private,
but freely available on the Internet like webcams, VNC servers, SCADA
systems and other industrial related results.
What to do
1. No Internet access
2. Keep your systems updated
3. Strong and unrelated passwords
4. General network security (limit/disable wi-fi, firewall, AV)
5. Microsoft EMET (The Enhanced Mitigation Experience Toolkit)
6. Limit network access to the systems
7. Limit human access to the systems (USB/keyboard)
8. Stay informed
ICS-CERT Official forums
Unofficial forums
Security alerts, news and mailing-lists
